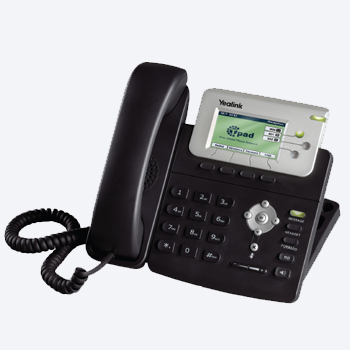

The Yealink Advanced Office phone features an intuitive user interface and enhanced functionality which
makes it easy for users to interact and maximise productivity. With TI TITAN Chipset and TI leading
VoIP voice engine, it enables high-definition audio for increased voice clarity.
As a cost effective IP solution, it helps users to streamline business processes, delivering a powerful
and consistent communications experience for small and large office environments.
- 3 VoIP accounts, hotline, emergency call
- Call waiting, call transfer, call forward
- Hold, mute, flash, auto-answer, redial
- 3-way conference, DND, speed dial
- XML Phonebook search/import/export
- Black list, call history
- Volume adjustment, ring tone selection
- Tone scheme, System log
- Multi-language (more than 20)
- Dial plan, dial-now
- SMS, Voicemail, MWI
- Intercom
- Call park, call pickup
- Distinctive ringtone
- Wideband codec: G.722
- Narrowband codec: G.711, G.723.1,
- G.726, G.729AB
- VAD, CNG, AEC, PLC, AJB, AGC
- Full-duplex speakerphone with AEC
- SIP v1 (RFC2543), v2 (RFC3261)
- NAT Traversal: STUN mode
- DTMF: In-Band, RFC2833, SIP Info
- Proxy mode and peer-to-peer SIP link mode
- IP Assignment: Static/DHCP/PPPoE
- TFTP/DHCP/PPPoE client
- Telnet/HTTP/HTTPS server
- DNS client
- NAT/DHCP server
- FTP/TFTP/HTTP/PnP auto-provision
- Configuration: browser/phone/auto-provision
- Direct IP call without SIP proxy
- Dial number via SIP server
- Dial URL via SIP server
- HTTPS (server/client)
- SRTP (RFC3711)
- Transport Layer Security (TLS)
- VLAN (802.1 pq), QoS
- Digest authentication using MD5/MD5-sess
- Secure configuration file via AES encryption
- Phone lock for personal privacy protection
- Admin/user configuration mode
- TI TITAN Chipset
- 132x64 graphic LCD
- 32 keys including 4 soft keys
- 5 LEDs: 1xpower, 3xline, 1xmessage
- 1xRJ9 handset port
- 1xRJ9 headset port
- 2xRJ45 10/100M Ethernet ports
- Power adapter: AC 100~240V input and DC
5V/1.2A Output
- Power over Ethernet (IEEE 802.3af)
