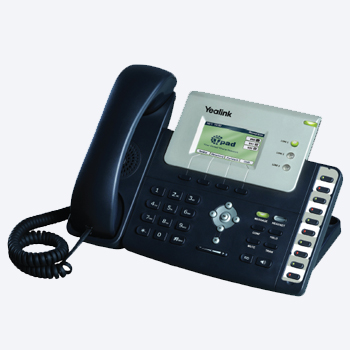

The Yealink SIP-T26P is an advanced IP phone which is designed for maximum productivity and efficiency
in the everyday business environment. It is equipped with the leading TI TITAN chipset, offers high
definition voice quality through TI voice engine, HD handset, HD speaker and HD codec (G.722).
Ten Built-in DSS keys can be programmed to support the IP-PBX features such as BLF/BLA, intercom,
call pickup with six navigation keys and four soft keys. Ten dedicated functional keys provide you with
direct access to the audio and call controls. The SIP-T26P has rich external interfaces including 2xLAN,
PoE, headset and expansion module ports.
- 3 VoIP accounts, hotline, emergency call
- Call waiting, call transfer, call forward
- Hold, mute, flash, auto-answer, redial
- 3-way conference, DND, speed dial
- XML phonebook search/import/export
- Black list, call history (100 entries)
- Volume adjustment, ring tone selection
- Tone scheme, System log
- Multi-language (more than 20)
- Supports up to 6 expansion modules
- Dial plan, dial-now
- SMS, Voicemail, MWI
- BLF/BLA, intercom, paging
- Call park, call pickup
- Distinctive ringtone
- Wideband codec: G.722
- Narrowband codec: G.711, G.723.1,
G.726, G.729AB
- VAD, CNG, AEC, PLC, AJB, AGC
- Full-duplex speakerphone with AEC
- SIP v1 (RFC2543), v2 (RFC3261)
- NAT Traversal: STUN mode
- DTMF: In-Band, RFC2833, SIP Info
- Proxy mode and peer-to-peer SIP link mode
- IP Assignment: Static/DHCP/PPPoE
- TFTP/DHCP/PPPoE client
- Telnet/HTTP/HTTPS server
- DNS client
- NAT/DHCP server
- FTP/TFTP/HTTP/PnP auto-provision
- Configuration: browser/phone/auto-provision
- Direct IP call without SIP proxy
- Dial number via SIP server
- Dial URL via SIP server
- HTTPS (server/client)
- SRTP (RFC3711)
- Transport Layer Security (TLS)
- VLAN (802.1 pq), QoS
- Digest authentication using MD5/MD5-sess
- Secure configuration file via AES encryption
- Phone lock for personal privacy protection
- Admin/user configuration mode
- TI TITAN Chipset
- 132x64 graphic LCD
- 45 keys including 13 programmable keys
- 1xRJ9 (4P4C) handset port
- 1xRJ9 (4P4C) headset port
- 2xRJ45 10/100M Ethernet ports
- 1XRJ12 (6P6C) expansion module port
- Power adapter: AC 100~240V input
- and DC 5V/1.2A output
- Power over Ethernet (IEEE 802.3af)
