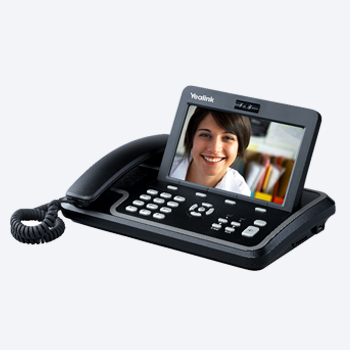

Yealink VP2009 Videophone Phone

Yealink VP2009 Videophone Phone

Yealink VP2009 Videophone Phone

VP-2009D represents the next generation in personal IP multimedia communication. It is equipped with TI DaVinci chipset, a 7" large TFT-LCD with 800x480 pixels and a 300K adjustable CMOS sensor camera, adopts the most advanced H.264 codec and supports adaptive bandwidth adjustment technology. All of those guarantee an excellent face-to-face user-experience even at low bandwidth. Besides, it provides the rich external interfaces including 2xRJ45, 1xUSB, 1xSD, 2.5mm headset, A/V out for function extension like online/offline advertisement which can improve the ARPU of ISP. The extraordinary video quality, advanced telephony features, rich applications, fashionable outlook, sturdy and durable structure, ensure VP-2009D as an ideal communication device for corporate officce and residential users.

All of those guarantee an excellent face-to-face user-experience even at low bandwidth. Besides, it provides the rich external interfaces including 2xRJ45, 1xUSB, 1xSD,2.5mm headset, A/V out for function extension like online/offline advertisement which can improve the ARPU of ISP.The extraordinary video quality, advanced telephony features, rich applications, fashionable outlook, sturdy and durable structure, ensure VP-2009D as an ideal communication device for corporate officce and residential users.

Key features and functions of VP2009 Videophone Phone

  • Video codecs: H.264 , H.263
  • Picture codecs: JPEG, GIF, PNG
  • Maximum D1 30 fps
  • Bandwidth level: 128kbps - 1Mbps
  • Powerful video DSP with advanced AJC and PLC
  • Adaptive bandwidth adjustment
  • Color media ring
  • Picture slide show support
  • Picture-in-Picture (PIP)
  • Camera block
  • Video phone book
  • Digital photo frame
  • SIP v1(RFC2543), v2(RFC3261)
  • NAT transverse: STUN mode
  • IP assignment: static/DHCP/PPPoE
  • In-Band DTMF, Out-of-Band DTMF, SIP Info
  • Proxy mode and peer-to-peer SIP link mode
  • TFTP/DHCP/PPPoE client
  • NAT/DHCP server
  • HTTP web server
  • DNS client
  • SNTP
  • QoS, VLAN (pending)
  • PoE
  • Voice codecs: G.711, G.723.1, G.726, G.729AB
  • VAD, CNG, AEC, PLC, AJB, AGC
  • Full-duplex hands-free speakerphone with AEC
  • Video and voice dial out selection
  • Call forward, call waiting, call transfer
  • Hold, DND, mute, call pickup, auto answer
  • Dial plan, dial-now, speed dial
  • Phonebook, contact group manage
  • Volume adjustment, ring tone selection
  • Wall paper, screen saver, sleep
  • Get date & time manually or automatically
  • Icon-driven UI
  • Multi-language
  • FTP/TFTP/HTTP/PnP auto-provision
  • Configuration: browser/phone/auto-provision
  • TR069 optional
  • Direct IP call without SIP proxy
  • Dial number via SIP server
  • Dial URL via SIP server
  • Certifications
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Admin/user configuration mode
  • TI DaVinci chipset
  • 128MB flash and 128MB DDR2 memory
  • 7" large digital TFT-LCD with 800x480 pixels
  • Touch screen
  • Camera: adjustable 300K pixels CMOS sensor
  • A/V out: RCA style stereo audio and composite
  • video output
  • 2xRJ45 Ethernet 10/100M ports
  • 1xUSB2.0 port
  • 1xSD slot
  • 2.5mm headset port
  • Speaker: 8 Ohm/2x1 Watt
  • Power adapter: AC 100~240V input and
  • DC 5V/3A output
  • Power consumption: 6~8 W standby
  • Net weight: 1.2Kg
  • Dimension: 286x89x45mm
  • Operating humidity: 10~95%
  • Storage temperature: up to 60 C
